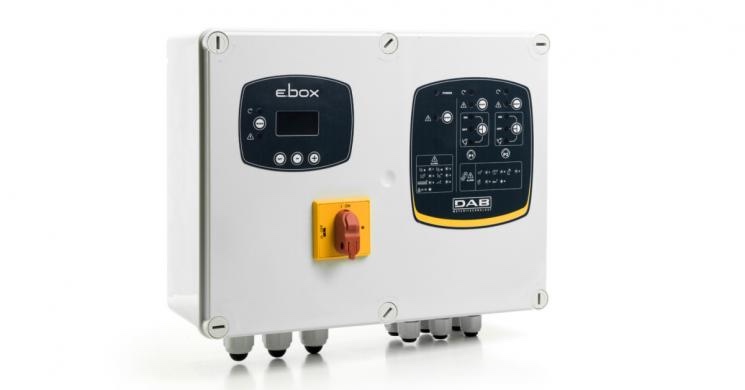

e.box plus is an electronic control panel for the protection and automatic operation of one or two submersible pumps or pressurizing both single-phase and three-phase, installed in domestic, civil and industrial environments.

e.box basic is an electronic control panel for the protection and automatic operation of one or two electronic submersible pumps or single-phase pressurization for domestic applications.

Nominal tension of power supply:

e.box plus 1x 230 V / 3 x 230 V - 3 x 400 V (automatic selection)

e.box basic 1x 230 V

Frequency: 50 - 60 Hz

Maximum use of power:

e.box plus 5,5 kWatt + 5,5 kWatt

e.box basic 2,2 kWatt + 2,2 kWatt

Maximum use of current: 12 A + 12 A

Starting capacitor:  KIT supplied as an accessory

Limits of use ambient temperature: -10° C + 40° C

Limits of storage temperature:  -25° C + 55° C

Relative humidity to the air: 90% a 20° C

Max altitude max: 1000 s.l.m.

Degree of protection: IP 55

Remote control available thanks to the D.Connect (D.Connect Box sold separately).

What is D.Connect? The innovative online service by DAB, the Internet of Pumps!

Click on the button below for all the information on compatible products and the list of function

Internet of Pumps

Reference standard for the construction of the panels EN 60335-1
